Practico

Home / .bock Products / Practico

Tychemed Products

.bock Products

Practico

  • Descriptions

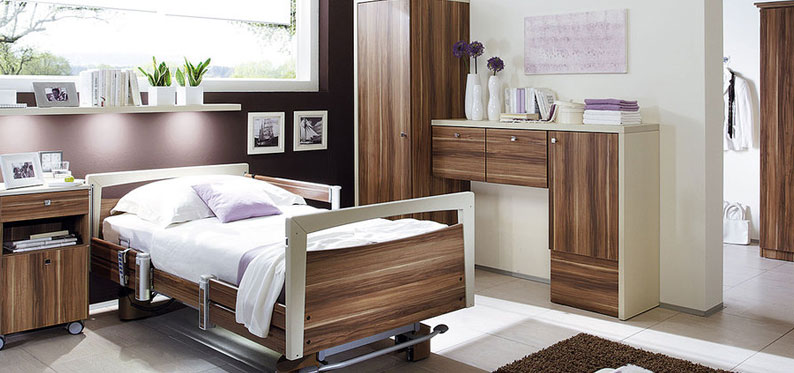

    TThis model reflects naturalness and warmth. The inconspicious design leaves a lot of space for personal property. Thereby the room is full of inteligent functionality. The example is the practico, it disposes of a tremedous variaty and it merges in every room situation. Despite the covered castors it is moveable in every height. The bed is also available without the covering of the castors.

  • Descriptions

    Also this is practico: modern colour combinations, short splitted side rails. Equip your bed individually.

  • Descriptions

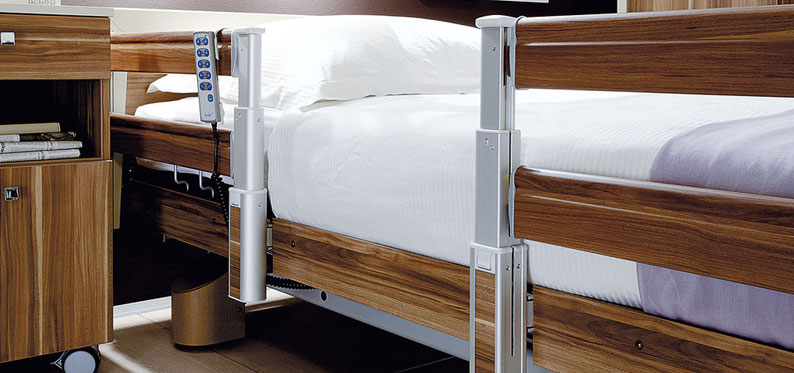

    practico is functional. As shown here, with splitted side rails and handy handset with clip to fit on the side rails.

  • Descriptions

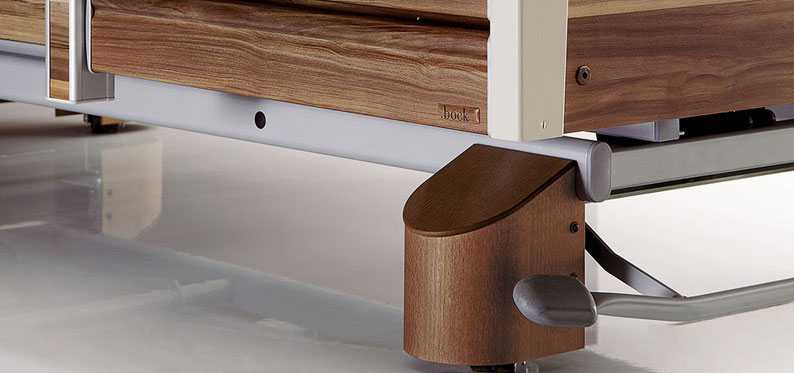

    This version proves how sophisticated and homelike the practico is. The castors have a wooden cover-ing. The central braking ensures a secure stability of the bed.

  • Descriptions

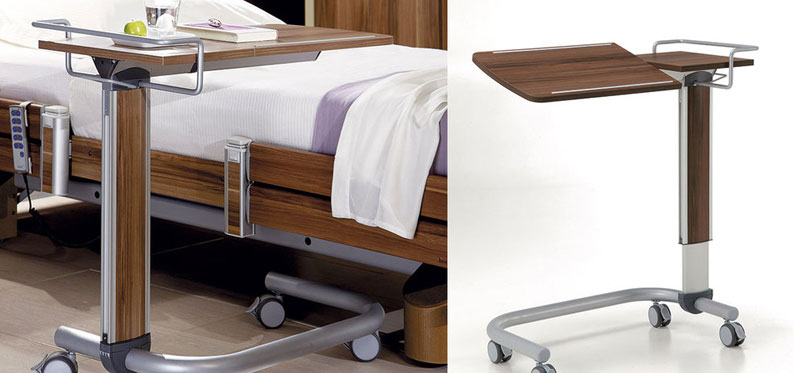

    Server aluna 351, with swivel-ing tray system and individual height adjustment provides a reliable comfort. As an altenative this server is also available with a fold-away tray (model 350).

Equipment variations
More individuality, more freedom of scope. At the same time appreance and technique are important. Choosing a variation becomes a question of individual taste. In any way you stay flexible.


End panel type I

Simple elegance by a straight decor panel and a rounded beech wooden bar.


End panel type II

Natural beauty by a solid wooden end panel of beech wood in a perfect design. Only possible with splitted side rails. Figure with bedclothes deposit.


End panel type IV

Modern design by material combination. Straight decor panel with rounded bars and a powder coated steel tube bar.


End panel type V

Modern design by material combination. Straight decor panel and a grip frame of powder coated steel tube


End panel type VII

Stylish design by a vaulted grip opening and a solid wooen bar frame which gets slimmer. Special detail: the corners are worked on mitre. Figure with bed cloth deposit.


End panel type VIII

Classic elegance by sideways attached solid rounded bars.

Specifications
Total weight 140 kg
External dimensions 105 × 210 cm
Safe capacity 220 kg
Maximum person weight 185 kg
Height adjustment 38 – 81 cm
Lifter space 15 cm
Side rail height 40 cm with wooden slatted frame,
35 cm with ripolux®
Lying surface dimensions 90 x 200 cm
Special sizes 90 – 120 cm width,
220 cm length

Motors
Water-resistant to IPX4, high-grade anti-kink cable management bracket, fuse in the mains plug, mains isolation system and emergency lowering.

Variations of equipment
End panels Type I / II / IV / V / VII / VIII
Side rails continuous side rails shared side rails
4-section
Electric back and leg section adjustment with automatic triple action knee break.
Electrical height adjustment
Lowered head/leg positions.
Advantages in brief
Enormous height adjustment range from 25 to 80 cm
Enormous stability in every bed height
Central braking with directional locking device
Lifter space of 15 cm
Head/leg down function
Comfort-sitting position
Handset with disabling function
Different comfort lying surfaces
Variable side rail solutions
Integrated bed extension
Basic equipment
Wooden sprung slats with degree of tension
Integrated continuous wooden side rail
Head/leg down position
Low entrance height
Side panelling for the lying surface frame
Individual disabling function
Cental braking
Extras
  • Roll-down mattress for lie low beds
  • Attachable tray
  • Lifting pole with triangle grip
  • Grab rail
  • Raised leg position 90°
  • Raised leg position stretched
  • Bed lamp model UB, UF
  • Bed lamp model F
  • Bedclothes deposit
  • Infusion holder for lifting pole
  • Infusion holder douplex (fixed)
  • Infusion holder quadruple (adjustable)
  • Mattresses
  • Mattress compensation
  • Mattress extension for 220 cm length
  • Head rest for 5-section lying surface
  • Bumpers for side rails
  • Bumpers for side rail attachment
  • Bumpers for splitted telescopic side rails
  • ripolux® neo-lying surface system
  • Aluminium lying surface with removable bar
  • Emergency lowering of the head part
  • Side rail attachment
  • Side rail attachment for splitted telescopic side rails
  • Short splitted telescopic side rails
  • Long splitted telescopic side rails
  • Special width/Special length
  • Special mattresses
  • Steel lying surface, upon request with removable bars
  • Transport aid
  • Universal clamp with modular accessories
  • Lamp below lying surface
  • Lower leg part with manual adjustment (raster)
  • Covered castors
  • Different colours
  • Different types of wooden end panels
  • Wall protection castors horizontal/vertical
  • Wall distance holder on the head end/ on the foot end
...
