Equipment variations
More individuality, more freedom of scope. At the same time appreance and technique are important. Choosing a variation becomes a question of individual taste. In any way you stay flexible.
End panel type I
Simple elegance by a straight decor panel and a rounded beech wooden bar.
End panel type II
Natural beauty by a solid wooden end panel of beech wood in a perfect design. Only possible with splitted side rails. Figure with bedclothes deposit.
End panel type IV
Modern design by material combination. Straight decor panel with rounded bars and a powder coated steel tube bar.
End panel type V
Modern design by material combination. Straight decor panel and a grip frame of powder coated steel tube
End panel type VII
Stylish design by a vaulted grip opening and a solid wooen bar frame which gets slimmer. Special detail: the corners are worked on mitre. Figure with bed cloth deposit.
End panel type VIII
Classic elegance by sideways attached solid rounded bars.
Specifications
Total weight |
140 kg |
External dimensions |
105 × 210 cm |
Safe capacity |
220 kg |
Maximum person weight |
185 kg |
Height adjustment |
25 – 80 cm |
Lifter space |
15 cm |
Side rail height |
40 cm with wooden slatted frame, 35 cm with ripolux® |
Lying surface dimensions |
90 x 200 cm |
Special sizes |
90 – 120 cm width, 220 cm length |
Motors
Water-resistant to IPX4, high-grade anti-kink cable management bracket, fuse in the mains plug, mains isolation system and emergency lowering.
Variations of equipment
End panels |
Type I / II / IV / V / VII / VIII |
Side rails |
continuous side rails
shared side rails |
4-section
|
Electric back and leg section adjustment with automatic triple action knee break.
Electrical height adjustment |
|
Lowered head/leg positions. |
Advantages in brief
Enormous height adjustment range from 25 to 80 cm
Enormous stability in every bed height

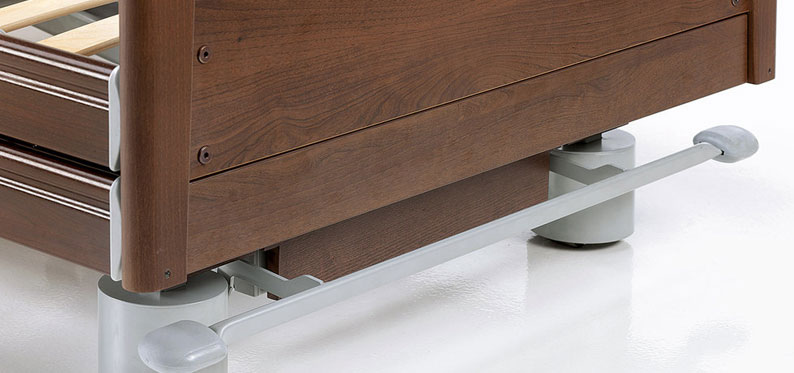

Central braking with directional locking device
Lifter space of 15 cm

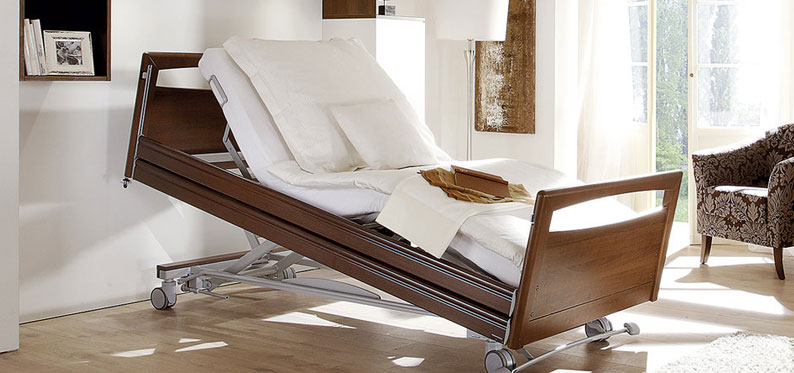

Head/leg down function
Comfort-sitting position
Handset with disabling function
Different comfort lying surfaces

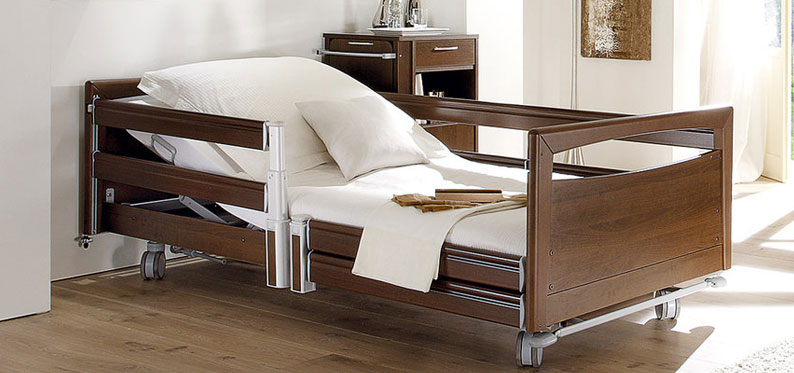

Variable side rail solutions
Integrated bed extension
Basic equipment
Wooden sprung slats with degree of tension
Integrated continuous wooden side rail
Head/leg down position
Low entrance height
Side panelling for the lying surface frame
Individual disabling function
Cental braking
Extras
- Roll-down mattress for lie low beds

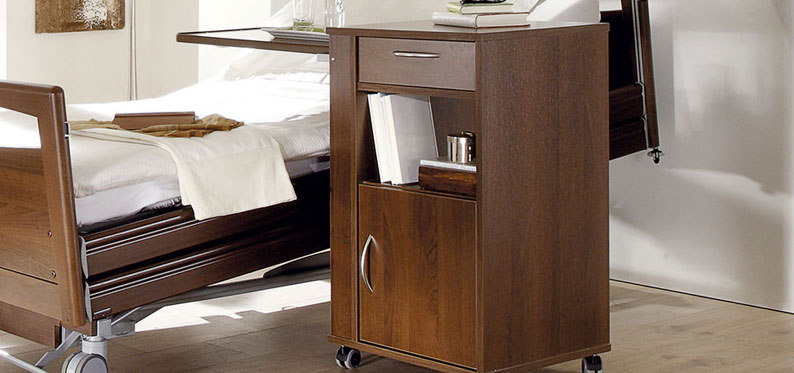

- Attachable tray
- Lifting pole with triangle grip
- Grab rail
- Raised leg position 90°
- Raised leg position stretched
- Bed lamp model UB, UF
- Bed lamp model F
- Bedclothes deposit
- Infusion holder for lifting pole
- Infusion holder douplex (fixed)
- Infusion holder quadruple (adjustable)
- Mattresses
- Mattress compensation
- Mattress extension for 220 cm length
- Head rest for 5-section lying surface
- Bumpers for side rails
- Bumpers for side rail attachment
- Bumpers for splitted telescopic side rails
- ripolux® neo-lying surface system
- Aluminium lying surface with removable bar
- Emergency lowering of the head part
- Side rail attachment
- Side rail attachment for splitted telescopic side rails
- Short splitted telescopic side rails
- Long splitted telescopic side rails
- Special width/Special length
- Special mattresses
- Steel lying surface, upon request with removable bars
- Transport aid
- Universal clamp with modular accessories
- Lamp below lying surface
- Lower leg part with manual adjustment (raster)
- Covered castors
- Different colours
- Different types of wooden end panels
- Wall protection castors horizontal/vertical

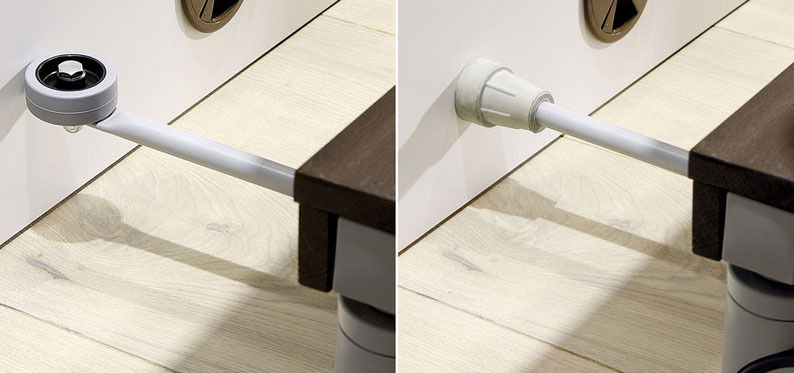

- Wall distance holder on the head end/ on the foot end
...
